Introduction to the Network Layer - Forwarding, Routing & Services

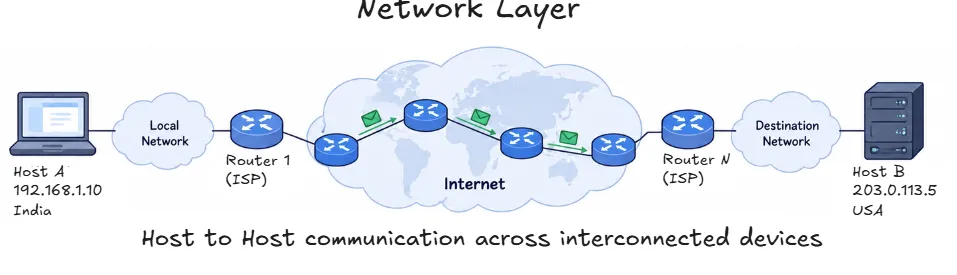

The Network Layer is like the postal service of the Internet its mission is to deliver data packets from one device to another, even if they’re separated by continents and multiple networks.
At its core, this layer is responsible for host-to-host communication across interconnected networks.
What Does the Network Layer Do?
The Network Layer is responsible for:
- Logical addressing of hosts using IP addresses
- Routing packets toward their destination
- Forwarding packets to the next hop
- Delivering packets across multiple interconnected networks
The Internet Protocol (IP) is the backbone protocol, with two major versions: IPv4 and IPv6.
Forwarding vs Routing
While often used interchangeably, routing and forwarding represent two distinct network layer functions: the Control Plane (planning) and the Data Plane (action).
A simple way to summarize is:
Routing decides the path. Forwarding moves the packet along that path.

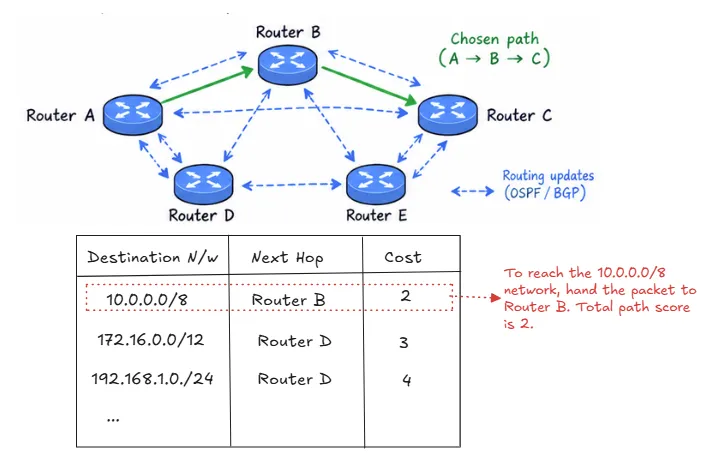

Routing
Routing is a network-wide process.
Determining the paths that packets should take through the network. Routing protocols exchange information and calculate paths so that routers can build the forwarding information they need.
How Routing Works -
- Information Exchange: Routers communicate using routing protocols (such as OSPF or BGP) to share link states, reachability, and network topology.
- Path Computation: Each router runs an algorithm (e.g., Dijkstra’s shortest path) to determine the best paths and next hops for all remote destinations.
- Table Construction: The computed paths are compiled into a Routing Table, which is subsequently used to populate the router’s local forwarding table.

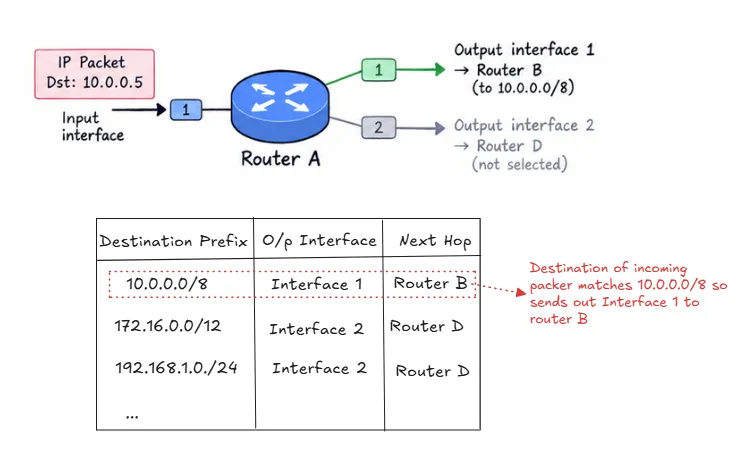

Forwarding
Forwarding is a local, per-packet operation.
Moving a packet from a router’s input interface to the appropriate output interface. A router examines a packet’s destination IP address and uses its forwarding table to determine where to send it next.
How Forwarding Works -
- Packet Arrival: A packet arrives at an input interface, and the router reads the destination IP header.
- Table Lookup: The router searches its Forwarding Table for the longest prefix match corresponding to that destination address.
- Packet Transmission: The packet is switched across the internal fabric and sent out onto the matched physical output interface toward the next hop.

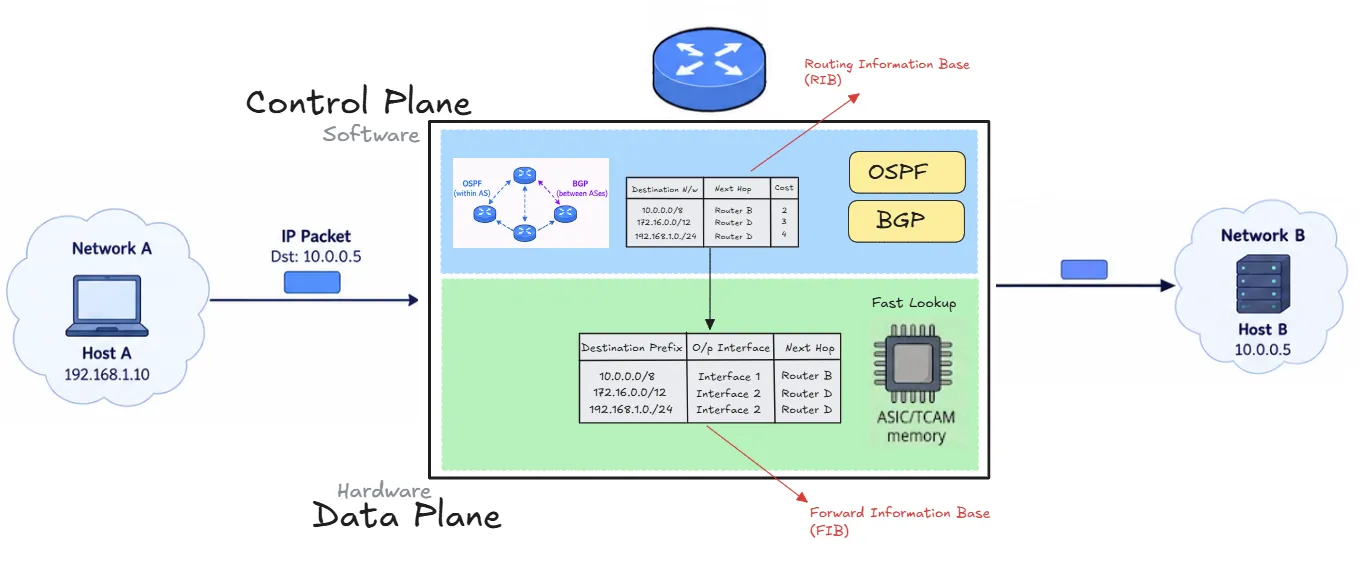

Data Plane vs Control Plane - Inside the Router
Router performs two different kinds of work: figuring out where packets should go and actually moving them. These are commonly described as the control plane and data plane.
A simple way to summarize is:
Control plane: figure out where packets should go. Data plane: actually move the packets.
Data Plane
Handles the actual movement of packets.
- Examines the destination IP address.
- Looks up the destination in its forwarding table.
- Sends the packet through the appropriate output interface.
Because routers may need to process enormous numbers of packets per second, data-plane operations are often highly optimized and may be implemented in specialized hardware.
Control Plane
Determines how packets should be routed through the network.
It runs routing protocols such as:
- OSPF — commonly used for routing within an autonomous system
- BGP — used to exchange routing information between autonomous systems
The control plane learns about network topology and routes, then uses that information to build the routing and forwarding information used by the data plane.
Network Layer Service Model
In the Internet, the network layer operates on a best-effort delivery model.
This means IP attempts to deliver packets toward their destination, but IP itself does not guarantee successful delivery.
| Feature | Guaranteed by IP? | Explanation |
|---|---|---|
| Delivery Guarantee | ❌ | No guarantee the packet will arrive |
| Ordering | ❌ | Packets can arrive out of order |
| Timeliness | ❌ | No delay or latency guarantees |
| Duplicate Handling | ❌ | May deliver duplicate packets |
This simplicity is intentional. IP focuses on moving packets between hosts without requiring the Network Layer itself to provide reliable delivery.
Protocols at higher layers can provide additional guarantees when needed. For example, TCP adds reliable, ordered delivery on top of IP.
